Product Summary

The UPW1J271MHD is an aluminum electrolytic capacitor.

Parametrics

UPW1J271MHD absolute maximum ratings: (1)Category Temperature Range: –55 to +105℃ (6.3 to 100V), –40 to + 105℃ (160 to 400V), –25 to +105℃ (450V); (2)Rated Voltage Range: 6.3 to 450V; (3)Rated Capacitance Range: 0.47 to 15000μF; (4)Capacitance Tolerance: ±20% at 120Hz, 20℃.

Features

UPW1J271MHD features: (1)Smaller case size and lower impedance than PM series; (2)Low impedance and high reliability withstanding 2000 hours to 8000 hours; (3)Capacitance ranges available based on the numerical values in E12 series under JIS; (4)Compliant to the RoHS directive (2002/95/EC).

Diagrams

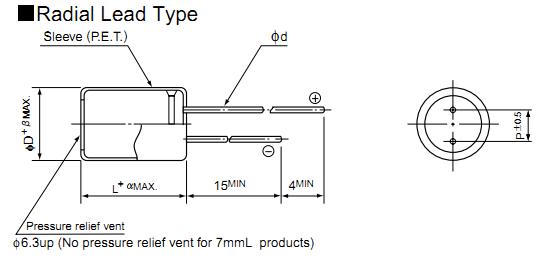

UPW1J271MHD dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

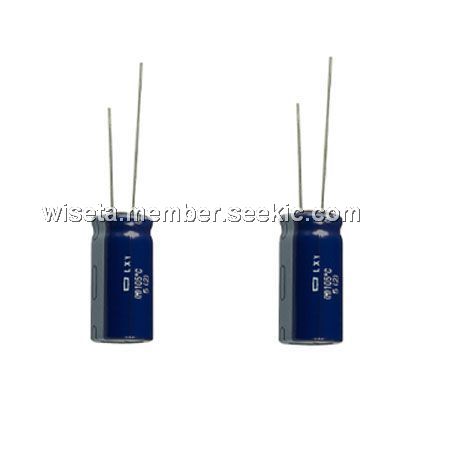

UPW1J271MHD
UPW1J271MHD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 63volts 270uF 16x15 20% 7.5LS
Data Sheet
0-1: $0.59
1-25: $0.56
25-100: $0.43
100-200: $0.39
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UPW1A101MDD
UPW1A101MDD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 100uF 5x11 20% 2LS
Data Sheet
0-1: $0.17
1-25: $0.14
25-100: $0.10
100-200: $0.08
UPW1A101MDD6
UPW1A101MDD6
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 100uF 5x15 20% 2LS
Data Sheet
0-1: $0.19
1-25: $0.10
25-100: $0.08
100-200: $0.06
UPW1A101MDH
UPW1A101MDH
Nichicon
Aluminum Electrolytic Capacitors - Leaded 100uF 10V 105c 5x11 20% 2LS
Data Sheet
Negotiable
UPW1A122MPD
UPW1A122MPD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 1200uF 10x20 20% 5LS
Data Sheet
0-1: $0.41
1-25: $0.38
25-100: $0.29
100-200: $0.26
UPW1A151MED
UPW1A151MED
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 150uF 6.3x11 20% 2.5LS
Data Sheet
0-1: $0.24
1-25: $0.14
25-100: $0.10
100-200: $0.08
UPW1A152MPD
UPW1A152MPD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 1500uF 105c 10x20 5LS
Data Sheet
0-1: $0.35
1-25: $0.31
25-100: $0.24
100-200: $0.22
