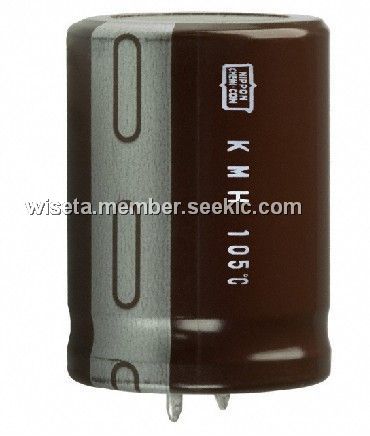

Product Summary

The EKMH630VSN272MQ35T is a standard 105°C , large capacitance, snap-in capacitor from United Chemi-Con. The load life for the EKMH630VSN272MQ35T is 2,000 hours at 105°C with the rated ripple current applied. The very high CV values and ripple current capabilities make these capacitors ideal for use in power supply filter circuits. The EKMH630VSN272MQ35T is available in 2 or 4-pin snap-in styles and 4 or 5-pin straight terminals. The EKMH630VSN272MQ35T is RoHS compliant offering Pb-free construction. The EKMH630VSN272MQ35T is not solvent proof. Refer to guidelines and precautions on the website for usage and installation conditions recommended for United Chemi-Con products.

Parametrics

EKMH630VSN272MQ35T absolute maximum ratings: (1)Category Temperature Range: -40 to 105℃ for 6.3 to 100VDC; -25 to 105℃ for 160 to 450VDC; (2)Rated Voltage Range: 6.3 to 450VDC; (3)Capacitance Range: 47 to 220,000μF; (4)Capacitance Tolerance: : 20% (M)at 20℃, 120Hz.

Features

EKMH630VSN272MQ35T features: (1)PC board 2 or 4-pin snap-in; optional 4 or 5-pin straight terminals.; (2)Capacitance range: 47 to 220,000μF.; (3)Voltage range: 6.3 to 450VDC.; (4)Category temperature range: -40℃ to 105℃ for 6.3 to 100V; -25℃ to 105℃ for 160 to 450V.; (5)Leakage current: 0.02CV(μA)or 3mA, whichever is smaller, after 5 minutes at 20℃.; (6)Standard capacitance tolerance: ±20%; (7)Nominal case size (DL): 22×20mm to 40×80mm.; (8)Rated lifetime: 2,000 hours at105C with the rated ripple current applied.

Diagrams

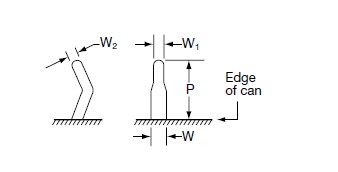

EKMH630VSN272MQ35T pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EKMH630VSN272MQ35T
EKMH630VSN272MQ35T

CAP ALUM 2700UF 63V 20% SNAP
Data Sheet
0-1: $1.94
1-10: $1.57
10-100: $1.20
100-250: $1.02
250-500: $0.91
500-1000: $0.80
1000-5000: $0.74
