Product Summary
The ESMH250VSN153MQ40T is a capacitor. It is the standard 85℃, large capacitance, snap-in capacitors from United Chemi-Con. The load life for the ESMH250VSN153MQ40T is 2,000 hours at 85℃ with the rated ripple current applied. The very high CV values and ripple current capabilities make the ESMH250VSN153MQ40T ideal for use in power supply filter circuits. The SMH capacitors are available in 2 or 4-pin snap-in styles and 4 or 5-pin straight terminals. The ESMH250VSN153MQ40T is RoHS compliant offering Pb-free construction.
Parametrics
ESMH250VSN153MQ40T absolute maximum ratings: (1)PC board 2 or 4-pin snap-in; optional 4 or 5-pin straight terminals; (2)Capacitance range: 56 to 270,000μF; (3)Voltage range: 6.3 to 450VDC.; (4)Category temperature range: -40 to85℃ for 6.3 to 100V; -25 to 85℃ for 160 to 450V; (5)Leakage current: 0.02CV(μA) or 3mA, whichever is smaller, after 5 minutes at±20℃; (6)Standard capacitance tolerance: 20%; (7)Nominal case size (D×L): 22×20mm to 40×80mm; (8)Rated lifetime: 2,000 hours at 85℃ with the rated ripple current applied.
Features
ESMH250VSN153MQ40T features: (1)Snap Mount; (2)Large Capacitance; (3)High CV; (4)High Ripple; (5)RoHS Compliant; (6)85℃ Maximum Temperature.

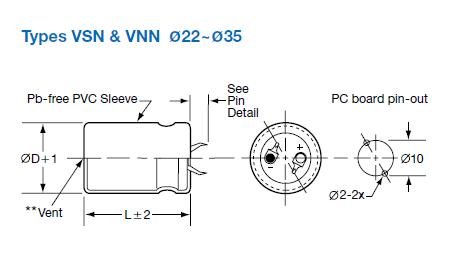

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

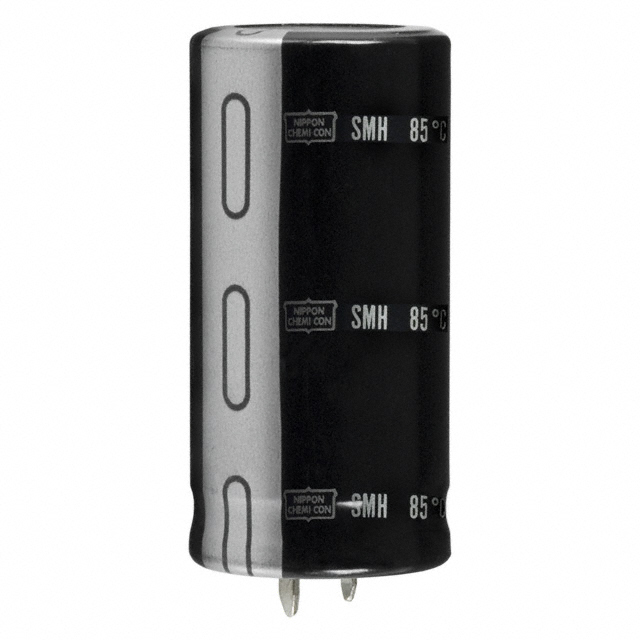

 ESMH250VSN153MQ40T |
|
CAP ALUM 15000UF 25V 20% SNAP |
Data Sheet |
|
|
||||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||||
 |

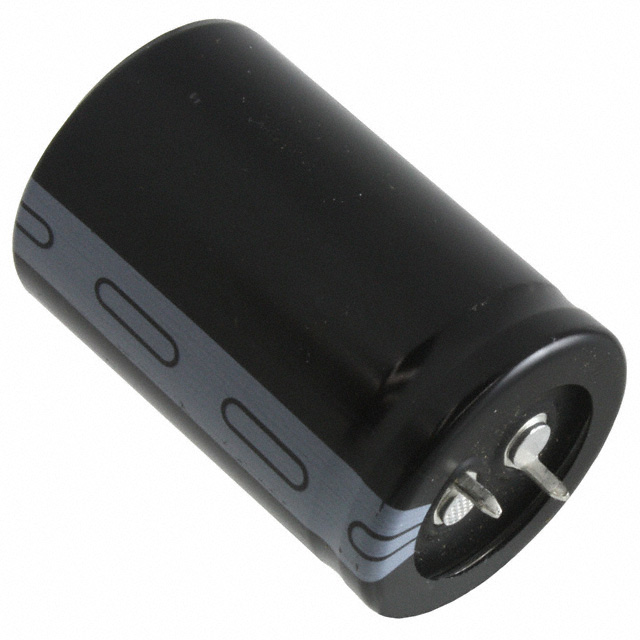

ESMH100VRD823MA50T |
United Chemi-Con |
Aluminum Electrolytic Capacitors - Snap In 82KUF 10V |
Data Sheet |
|
|
||||||||||||||||||
 |

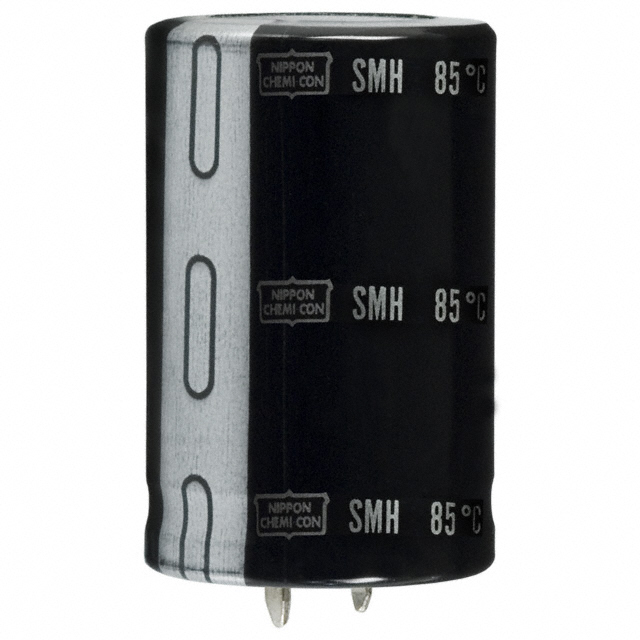

ESMH100VSN123MP25T |
|
CAP ALUM 12000UF 10V 20% SNAP |
Data Sheet |
|
|
||||||||||||||||||
 |
ESMH100VSN153MP30T |
|
CAP ALUM 15000UF 10V 20% SNAP |
Data Sheet |
|
|
||||||||||||||||||
 |
ESMH100VSN153MQ25T |
|
CAP ALUM 15000UF 10V 20% SNAP |
Data Sheet |
|
|
||||||||||||||||||
 |
ESMH100VSN183MP35T |
|
CAP ALUM 18000UF 10V 20% SNAP |
Data Sheet |
|
|
||||||||||||||||||
 |
ESMH100VSN223MP40T |
|
CAP ALUM 22000UF 10V 20% SNAP |
Data Sheet |
|
|
||||||||||||||||||
