Product Summary

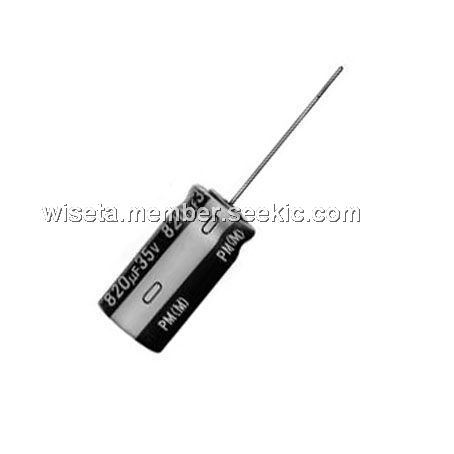

The UPJ1E471MPD is an aluminum electrolytic capacitor.

Parametrics

UPJ1E471MPD Specifications: (1)Category Temperature Range: –55 to +105℃ (6.3 to 100V), –40 to +105℃ (160 to 400V), –25 to +105℃ (450V); (2)Rated Voltage Range: 6.3 to 450V; (3)Rated Capacitance Range: 0.47 to 15000μF; (4)Capacitance Tolerance: ±20% at 120Hz, 20℃; (5)Leakage Current: 6.3 to 100V.

Features

UPJ1E471MPD features: (1)Low impedance and high reliability withstanding 5000 hours load life at +105℃ (3000 / 2000 hours for smaller case sizes as specified below); (2)Capacitance ranges available based on the numerical values in E12 series under JIS; (3)Ideally suited for use of switching power supplies; (4)Compliant to the RoHS directive (2002/95/EC).

Diagrams

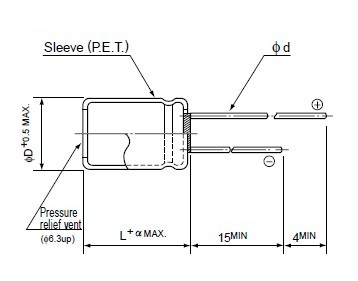

UPJ1E471MPD dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UPJ1E471MPD
UPJ1E471MPD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 25volts 470uF 10x20 20% 5LS
Data Sheet
0-1: $0.36
1-10: $0.25
10-100: $0.15
100-500: $0.11
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UPJ1A103MHD
UPJ1A103MHD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 10000uF 18x40 20% 7.5LS
Data Sheet
0-1: $3.74
1-10: $2.41
10-100: $1.96
100-500: $1.36
UPJ1A222MHD6AA
UPJ1A222MHD6AA
Nichicon
Aluminum Electrolytic Capacitors - Leaded 2200UF 10V 105c
Data Sheet
0-1: $0.30
1-250: $0.29
250-500: $0.26
500-1250: $0.25
UPJ1A152MHD6
UPJ1A152MHD6
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 1500uF 16x15 20% 7.5LS
Data Sheet
0-1: $1.22
1-10: $0.80
10-100: $0.62
100-500: $0.37
UPJ1A331MPD
UPJ1A331MPD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 330uF Ultra Small Sz
Data Sheet
0-1: $0.38
1-10: $0.26
10-100: $0.20
100-500: $0.14
UPJ1A181MED
UPJ1A181MED
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 180uF 6.3x11 20% 2.5LS
Data Sheet
0-1: $0.23
1-10: $0.16
10-100: $0.12
100-500: $0.09
UPJ1A332MHD6
UPJ1A332MHD6
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 3300uF Ultra Small Sz
Data Sheet
0-1: $0.80
1-10: $0.55
10-100: $0.33
100-500: $0.25
