Product Summary

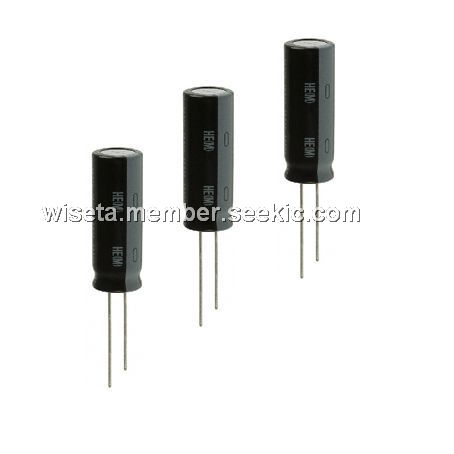

The UHE1A472MHD is a Nichicon aluminum electrolytic capacitor.

Parametrics

UHE1A472MHD absolute maximum ratings: (1)Operating temperature range: -40 to +105 ℃(6.3 to 100V); (2)Voltage range:6.3 to 450V; (3)Capacitance range: 6.8 to 180000μF; (4)Capacitance tolerance:±20% at 120Hz,20℃; (5)Leakage current: After 2 minutes of rated voltage, leakage current is not more than 0.01CV or 3(µA), whichever is greater; (6) Cap: 4700 μF; (7)Impedance ΩMax.@ 20℃/100kH: 0.020; (8)Ripple(mA rms) 105℃/100kHz: 2880.

Features

UHE1A472MHD features: (1)Lead free product; (2)High reliability; (3)Long life up to 10,000 hours.

Diagrams

UHE1A472MHD dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UHE1A472MHD
UHE1A472MHD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 4700uF 12.5x35.5 20% 5LS
Data Sheet
0-1: $1.02
1-10: $0.79
10-100: $0.54
100-500: $0.46
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UHE1A101MDD
UHE1A101MDD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 100uF 5x11 20% 2LS
Data Sheet
0-1: $0.13
1-10: $0.08
10-100: $0.06
100-500: $0.05
UHE1A101MDD1TD
UHE1A101MDD1TD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 100uF 10V 105c PET
Data Sheet
0-1: $0.13
1-2000: $0.03
2000-4000: $0.03
4000-10000: $0.03
UHE1A101MDT
UHE1A101MDT

CAP ALUM 100UF 10V 20% RADIAL
Data Sheet
0-4000: $0.03
UHE1A102MPD
UHE1A102MPD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 1000uF 8x20 20% 3.5LS
Data Sheet
0-1: $0.49
1-10: $0.35
10-100: $0.20
100-500: $0.17
UHE1A102MPD6
UHE1A102MPD6
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 1000uF 10x16 20% 5LS
Data Sheet
0-1: $0.40
1-10: $0.28
10-100: $0.16
100-500: $0.14
UHE1A102MPT
UHE1A102MPT

CAP ALUM 1000UF 10V 20% RADIAL
Data Sheet
0-1400: $0.08
