Product Summary

The TMK316BJ106KL-T is a kind of high value multilayer cermaic capacitor.

Parametrics

TMK316BJ106KL-T absolute maximum ratings: (1)Temperature range: -25 to +85℃; (2)Ref. Temp.: 20℃; (3)Capacitance change〔％: ±10%; (4)Capacitance: 10μF; (5)Rated voltage: 25 V.

Features

TMK316BJ106KL-T features: (1)Improved higher density mounting（042 to 105 type）; (2)Monolithic structure provides higher reliability; (3)A wide range of capacitance values available in standard case sizes; (4)The use of nickel as electrode material and plating processing improve the solderability and heat resistance characteristics; (5)Low equivalent series resistance(ESR) provides superior noise absorption characteristics; (6)Compared to tantalum or aluminum electrolytic capacitors, multilayer ceramic capacitors offer a number of superior features; (7)Higher permissible ripple current values; (8)Smaller case sizes with high rated voltage; (9)Improved reliability due to higher insulation resistance and breakdown voltage.

Diagrams

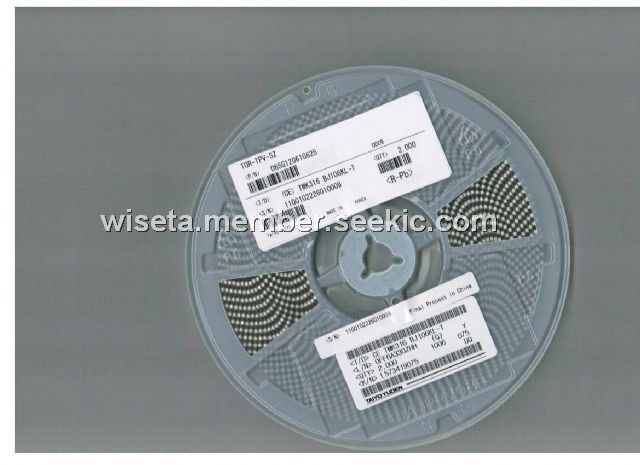

TMK316BJ106KL-T package

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TMK316BJ106KL-T
TMK316BJ106KL-T
Taiyo Yuden
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT CAP MLCC 1206 25V X5R 10uF 10%
Data Sheet
0-1: $0.34
1-10: $0.26
10-50: $0.19
50-100: $0.12
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TMK316AB7475KL-T
TMK316AB7475KL-T
Taiyo Yuden
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT CAP MLCC 1206 25V X7R 4.7uF 10%
Data Sheet
0-1: $0.33
1-10: $0.26
10-50: $0.19
50-100: $0.12
TMK316ABJ106KD-T
TMK316ABJ106KD-T
Taiyo Yuden
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT CAP, MLCC, 1206, 25V X5R, 10uF 10%
Data Sheet
0-1: $0.33
1-10: $0.26
10-50: $0.19
50-100: $0.12
TMK316B7105ML-T
TMK316B7105ML-T
Taiyo Yuden
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT CAP MLCC 1206 25V X7R 1uF 20%
Data Sheet
0-1: $0.23
1-10: $0.18
10-50: $0.12
50-100: $0.07
TMK316B7106KL-TD
TMK316B7106KL-TD
Taiyo Yuden
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT CAP MLCC 1206 25V X7R 10uF 10%
Data Sheet
0-1: $0.35
1-10: $0.27
10-50: $0.20
50-100: $0.12
TMK316B7106ML-TD
TMK316B7106ML-TD
Taiyo Yuden
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT CAP MLCC 1206 25V X7R 10uF 20%
Data Sheet
0-1: $0.35
1-10: $0.27
10-50: $0.20
50-100: $0.12
TMK316B7154KD-T
TMK316B7154KD-T
Taiyo Yuden
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT CAP MLCC 1206 25V X7R 0.15uF 10%
Data Sheet
0-1: $0.24
1-10: $0.18
10-50: $0.11
50-100: $0.06
