Product Summary

The ELXY500ELL181MJ20S is a miniature aluminum electrolytic capacitor.

Parametrics

ELXY500ELL181MJ20S specifications: (1)Category Temperature Range: -55 to +105℃; (2)Rated Voltage Range: 10 to 63Vdc; (3)Capacitance Tolerance: ±20%(M); (4)Leakage Current: I=0.01CV or 3μA, whichever is greater. Where, I : Max. leakage current (μA), C : Nominal capacitance (μF), V : Rated voltage (V).

Features

ELXY500ELL181MJ20S features: (1)Newly innovative electrolyte and internal architecture are employed; (2)Endurance with ripple current: 105C 2000 to 8000 hours; (3)Solvent-proof type; (4)Pb-free design.

Diagrams

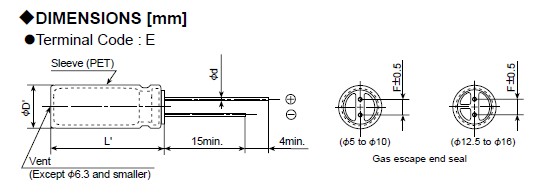

ELXY500ELL181MJ20S dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

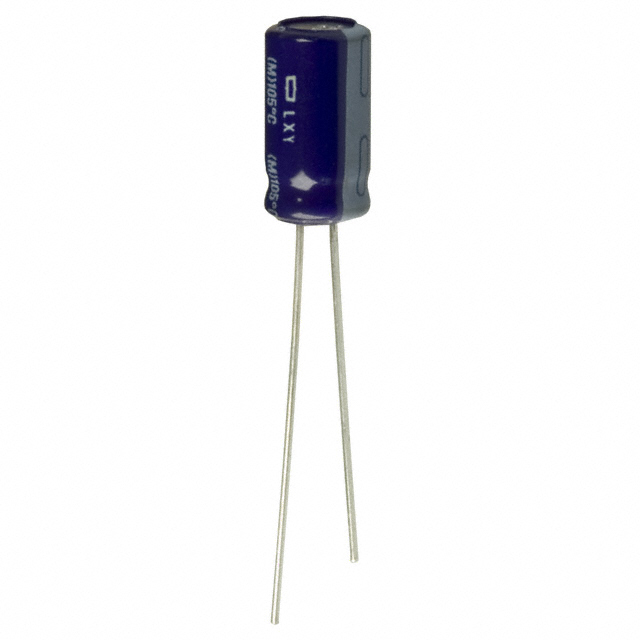

ELXY500ELL181MJ20S
ELXY500ELL181MJ20S
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 180UF 50V
Data Sheet
0-1: $0.44
1-50: $0.31
50-100: $0.22
100-500: $0.20
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ELXY100ELL102MJ20S
ELXY100ELL102MJ20S
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 1000uF 10V
Data Sheet
0-1: $0.35
1-25: $0.30
25-50: $0.25
50-100: $0.22
ELXY100ELL221MF15S
ELXY100ELL221MF15S
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 220uF 10V
Data Sheet
0-1: $0.12
1-100: $0.11
100-500: $0.10
500-1000: $0.08
ELXY160ELL121MFB5D
ELXY160ELL121MFB5D
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 120UF 16V
Data Sheet
0-1: $0.25
1-10: $0.17
10-100: $0.10
100-500: $0.10
ELXY160ELL271MH12D
ELXY160ELL271MH12D
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 270UF 16V
Data Sheet
0-1: $0.29
1-10: $0.21
10-100: $0.14
100-500: $0.13
ELXY100ELL392ML25S
ELXY100ELL392ML25S
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 3900UF 10V
Data Sheet
0-1: $0.58
1-50: $0.55
50-100: $0.51
100-500: $0.45
ELXY100ETD681MJ16S
ELXY100ETD681MJ16S
United Chemi-Con
Aluminum Electrolytic Capacitors - Leaded 680UF 10V
Data Sheet
0-1: $0.19
1-800: $0.11
800-1600: $0.11
1600-4000: $0.11
