Product Summary

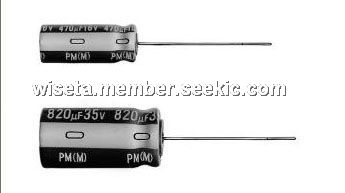

The UPM1V151MPD6 is an aluminum electrolytic capacitor.

Parametrics

UPM1V151MPD6 absolute maximum ratings: (1)Category Temperature Range: – 55 to +105℃ (6.3 to 100V), –40 to +105℃ (160 to 400V), –25 to +105℃ (450V); (2)Rated Voltage Range: 6.3 to 450V; (3)Rated Capacitance Range: 0.47 to 15000μF; (4)Capacitance Tolerance: ±20% at 120Hz, 20℃.

Features

UPM1V151MPD6 features: (1)High reliability withstanding 5000 hour load life at +105℃ (3000/2000 hours for smaller case sizes as specified below); (2)Capacitance ranges available based on the numerical values in E12 series under JIS; (3)Compliant to the RoHS directive (2002/95/EC).

Diagrams

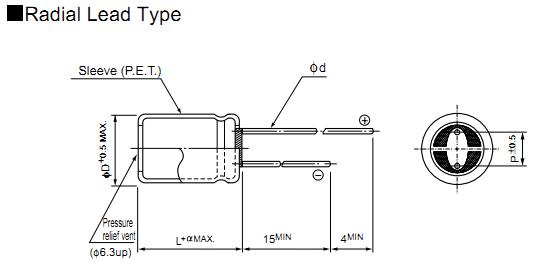

UPM1V151MPD6 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UPM1V151MPD6
UPM1V151MPD6
Nichicon
Aluminum Electrolytic Capacitors - Leaded 35volts 150uF 10x12.5 '20% 5LS
Data Sheet
0-1: $0.27
1-10: $0.19
10-100: $0.13
100-500: $0.09
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UPM1A101MED
UPM1A101MED
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 100uF Ultra Small Sz
Data Sheet
0-1: $0.26
1-10: $0.18
10-100: $0.14
100-500: $0.10
UPM1A102MHD6
UPM1A102MHD6
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 1000uF Ultra Small Sz
Data Sheet
0-1: $1.21
1-10: $0.91
10-100: $0.58
100-500: $0.50
UPM1A102MHD6TO
UPM1A102MHD6TO
Nichicon
Aluminum Electrolytic Capacitors - Leaded 1000uF 10V 105c
Data Sheet
0-1: $1.08
1-50: $0.65
50-100: $0.51
100-200: $0.51
UPM1A102MHH6TO
UPM1A102MHH6TO
Nichicon
Aluminum Electrolytic Capacitors - Leaded 1000UF 10V
Data Sheet
Negotiable
UPM1A102MPD
UPM1A102MPD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 1000uF Ultra Small Sz
Data Sheet
0-1: $0.36
1-10: $0.26
10-100: $0.17
100-500: $0.12
UPM1A102MPD1TD
UPM1A102MPD1TD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 1000UF 10V 105c
Data Sheet
0-1: $0.36
1-500: $0.12
500-1000: $0.11
1000-1500: $0.10
