Product Summary

The LLS1H222MELZ is an aluminum electrolytic capacitor.

Parametrics

LLS1H222MELZ absolute maximum ratings: (1)Category Temperature Range: – 40 to +85℃ (16 to 250V), – 25 to +85℃ (350 to 450V); (2)Rated Voltage Range: 16 to 450V; (3)Rated Capacitance Range: 56 to 56000μF; (4)Capacitance Tolerance: ±20% at 120Hz, 20℃; (5)Leakage Current: 1≦3CVμA.

Features

LLS1H222MELZ features: (1)Withstanding 3000 hours application of rated ripple current at 85℃; (2)Compliant to the RoHS directive (2002/95/EC).

Diagrams

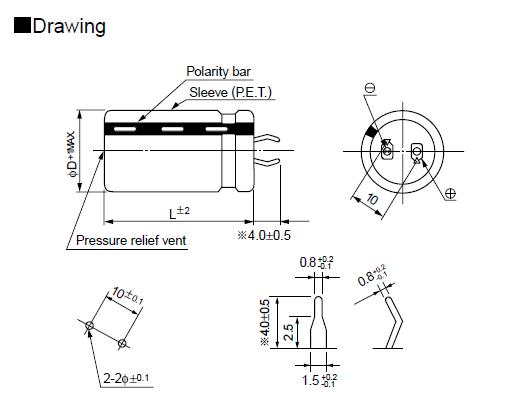

LLS1H222MELZ drawing

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LLS1H222MELZ
LLS1H222MELZ
Nichicon
Aluminum Electrolytic Capacitors - Snap In 50volts 2200uF 85c
Data Sheet
0-1: $1.66
1-250: $0.88
250-500: $0.78
500-1250: $0.68
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LLS1C103MELZ
LLS1C103MELZ
Nichicon
Aluminum Electrolytic Capacitors - Snap In 16volts 10000uF 85c
Data Sheet
0-1: $1.76
1-250: $1.13
250-500: $1.01
500-1250: $0.89
LLS1C123MELZ
LLS1C123MELZ
Nichicon
Aluminum Electrolytic Capacitors - Snap In 16volts 12000uF 85c 22x30x10L/S
Data Sheet
0-1: $1.90
1-250: $1.21
250-500: $1.10
500-1250: $0.95
LLS1C153MELA
LLS1C153MELA
Nichicon
Aluminum Electrolytic Capacitors - Snap In 16volts 15000uF 85c 25x30x10L/S
Data Sheet
0-1: $2.23
1-250: $1.42
250-500: $1.29
500-1250: $1.13
LLS1C153MELB
LLS1C153MELB
Nichicon
Aluminum Electrolytic Capacitors - Snap In 16volts 15000uF 85c 30x25x10L/S
Data Sheet
0-1: $2.43
1-250: $1.55
250-500: $1.41
500-1250: $1.23
LLS1C153MELZ
LLS1C153MELZ
Nichicon
Aluminum Electrolytic Capacitors - Snap In 16volts 15000uF 85c 22x35x10L/S
Data Sheet
0-1: $2.12
1-250: $1.35
250-500: $1.23
500-1250: $1.07
LLS1C183MELA
LLS1C183MELA
Nichicon
Aluminum Electrolytic Capacitors - Snap In 16volts 18000uF 85c 25x35x10L/S
Data Sheet
0-1: $2.45
1-250: $1.57
250-500: $1.43
500-1250: $1.24
