Product Summary

The LGY1J122MELZ25 is an aluminum electrolytic capacitor.

Parametrics

LGY1J122MELZ25 specifications: (1)Category Temperature Range: -40 to +105℃; (2)Rated voltage range: 16 to 100V; (3)Rated capacitance range: 560 to 47000μF; (4)Capacitance tolerance: ±20% at 120Hz, 20℃; (5)Leakage Current: I≦3√CV(μA) (After 5 minutes’ application of rated voltage) [C : Rated Capacitance (μF) V: Voltage (V)].

Features

LGY1J122MELZ25 features: (1)Long life assurance series withstanding 5000 hours application of ripple current at 105℃; (2)Suited for use in industrial power supplies applications where high reliability and dependable performance are the most important; (3)Suited for ballast application; (4)Compliant to the RoHS directive (2002/95/EC).

Diagrams

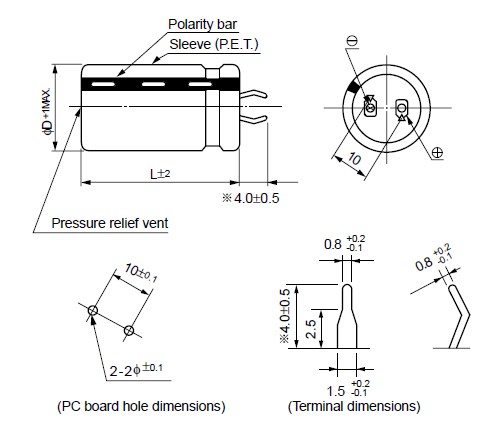

LGY1J122MELZ25 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LGY1J122MELZ25
LGY1J122MELZ25
Nichicon
Aluminum Electrolytic Capacitors - Snap In 63volts 1200uF 105c 22x25x10L/S
Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LGY1C103MELA25
LGY1C103MELA25
Nichicon
Aluminum Electrolytic Capacitors - Snap In 16volts 10000uF 105c 25x25x10L/S
Data Sheet
0-1: $2.93
1-250: $1.95
250-500: $1.79
500-1250: $1.61
LGY1C103MELZ30
LGY1C103MELZ30
Nichicon
Aluminum Electrolytic Capacitors - Snap In 16volts 10000uF 105c 22x30x10L/S
Data Sheet
Negotiable
LGY1C123MELA30
LGY1C123MELA30
Nichicon
Aluminum Electrolytic Capacitors - Snap In 16volts 12000uF 105c 25x30x10L/S
Data Sheet
Negotiable
LGY1C123MELB25
LGY1C123MELB25
Nichicon
Aluminum Electrolytic Capacitors - Snap In 16volts 12000uF 105c 30x25x10L/S
Data Sheet
Negotiable
LGY1C123MELZ35
LGY1C123MELZ35
Nichicon
Aluminum Electrolytic Capacitors - Snap In 16volts 12000uF 105c 22x35x10L/S
Data Sheet
Negotiable
LGY1C153MELA35
LGY1C153MELA35
Nichicon
Aluminum Electrolytic Capacitors - Snap In 16volts 15000uF 105c 25x35x10L/S
Data Sheet
Negotiable
