Product Summary

The LGU2W471MELC is an aluminum electrolytic capacitor.

Parametrics

LGU2W471MELC absolute maximum ratings: (1)Category Temperature Range: – 40 to + 105℃ (16 to 250V), – 25 to +105℃ (315 to 450V); (2)Rated Voltage Range: 16 to 450V; (3)Rated Capacitance Range: 47 to 47000μF; (4)Capacitance Tolerance: ±20% at 120Hz, 20℃.

Features

LGU2W471MELC features: (1)Withstanding 3000 hours application of rated ripple current at 105℃; (2)Compliant to the RoHS directive (2002/95/EC).

Diagrams

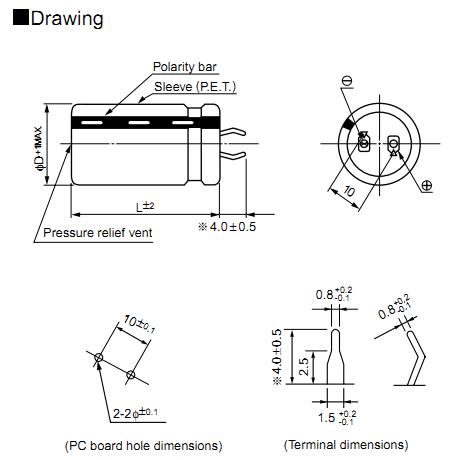

LGU2W471MELC drawing

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LGU2W471MELC
LGU2W471MELC
Nichicon
Aluminum Electrolytic Capacitors - Snap In 450volts 470uF 105c
Data Sheet
0-1: $6.63
1-200: $4.27
200-600: $4.05
600-1000: $4.00
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LGU2A102MELA
LGU2A102MELA
Nichicon
Aluminum Electrolytic Capacitors - Snap In 100volts 1000uF 0.2 25x30 105c
Data Sheet
0-1: $2.31
1-250: $1.39
250-500: $1.34
500-1250: $1.27
LGU2A102MELZ
LGU2A102MELZ
Nichicon
Aluminum Electrolytic Capacitors - Snap In 100volts 1000uF 0.2 22x30 105c
Data Sheet
0-1: $2.13
1-250: $1.10
250-500: $1.00
500-1250: $0.94
LGU2A122MELA
LGU2A122MELA
Nichicon
Aluminum Electrolytic Capacitors - Snap In 100volts 1200uF 0.2 25x30 105c
Data Sheet
0-1: $2.59
1-250: $1.64
250-500: $1.39
500-1250: $1.35
LGU2A122MELB
LGU2A122MELB
Nichicon
Aluminum Electrolytic Capacitors - Snap In 100volts 1200uF 0.2 30x25 105c
Data Sheet
0-1: $2.92
1-250: $1.85
250-500: $1.57
500-1250: $1.52
LGU2A122MELZ
LGU2A122MELZ
Nichicon
Aluminum Electrolytic Capacitors - Snap In 100volts 1200uF 0.2 22x40 105c
Data Sheet
0-1: $2.48
1-250: $1.57
250-500: $1.33
500-1250: $1.29
LGU2A152MELA
LGU2A152MELA
Nichicon
Aluminum Electrolytic Capacitors - Snap In 100volts 1500uF 0.2 25x35 105c
Data Sheet
0-1: $2.93
1-250: $1.86
250-500: $1.57
500-1250: $1.52
