Product Summary

The ESMQ401VSN821MA45S is a high voltage snap-in capacitor that offers downsized versions of the current miniaturized SMM series. The capacitor has a rated lifetime of 2,000 hours at 85℃ with the rated ripple current applied. With high ripple current capability and higher CV per case size than the SMM series, the SMQ capacitor is suitable for many downsized power supply circuits. The standard SMQ capacitor has a 2-pin snap-in terminal style. The ESMQ401VSN821MA45S is RoHS compliant offering Pb-free construction and PET (polyester) sleeves with no end disk as the standard. The standard ESMQ401VSN821MA45S capacitor is not solvent proof. Refer to guidelines and precautions on the website for usage and installation conditions recommended for United Chemi-Con products.

Parametrics

ESMQ401VSN821MA45S absolute maximum ratings: (1)Capacitance range: 82 to 3,900μF; (2)Voltage range: 160 to 450VDC; (3)Category temperature range: -25℃ to 85℃; (4)Standard capacitance tolerance: ±20%; (5)Nominal case size (D*L): 22*25mm to 35*50mm.

Features

ESMQ401VSN821MA45S features: (1)Snap Mount; (2)Downsize; (3)Large Capacitance; (4)RoHS Compliant; (5)85℃ Maximum Temperature.

Diagrams

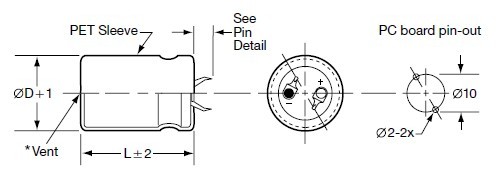

ESMQ401VSN821MA45S Dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ESMQ401VSN821MA45S
ESMQ401VSN821MA45S

CAP ALUM 820UF 400V 20% SNAP
Data Sheet
0-1: $4.88
1-10: $4.34
10-100: $3.47
100-250: $3.14
250-500: $2.98
500-1000: $2.76
1000-5000: $2.69
